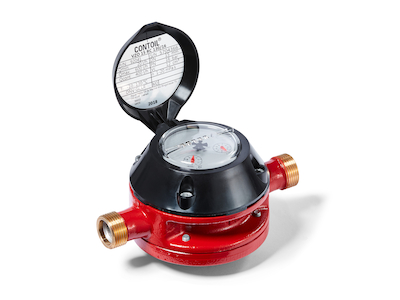

CONTOIL^® VZO, DN 15-40 RC

Technical Data

• Mechanical Readout / Display
• Pulse output version available
• Threaded connections
• DN 15 - 40
• Flow range: 10 l/h to 6000 l/h
• Accuracy: 0.3 - 1 %
• Pressure: 16 bar

Fuel Types

• Fluids according to ISO 8217-2024
• Heating fuel extra light/light, medium, heavy, fuel blends
• Naphtha
• Lubricatiing liquids (oils)

Application Areas

• Oil burner fuel consumption (heating boilers, industrial furnaces, tar processing plants)
• Consumption monitoring and optimisation (ships, generators and large vehicles)
• Flow measurement for mineral oils
• Optional remote processing and integration into superior systems
• Manual dosing / batching

Benefits

• Mass flow measurement
• Integrated temperature sensor
• Simple burner setting with flow rate display
• Simple consumption monitoring with limiting value switch Qmin/Qmax
• Manual dosing feature, with a resettable counter
• Can be mounted on the pressure or suction side of a pump
• Space-saving installation, because no straight inlet/outlet sections are required
• Flexible mounting of the meter in horizontal, vertical or inclined positions
• Accurate measurement result - reading is independent of the temperature and viscosity of the fluid
• Minimum failure costs - simple function monitoring, rapid fault analysis and simple repairs on site

CONTOIL^® VZO, DN 15-50 FL

Technical Data

• Mechanical Readout / Display
• Pulse output version available
• Flanged connections
• DN 15 - 50
• Flow range: 10 l/h to 30,000 l/h
• Accuracy: 0.3 - 1 %
• Pressure: 16 bar

Fuel Types

• Fluids according to ISO 8217-2024
• Heating fuel extra light/light, medium, heavy, fuel blends
• Naphtha
• Lubricatiing liquids (oils)

Application Areas

• Oil burner fuel consumption (heating boilers, industrial furnaces, tar processing plants)
• Consumption monitoring and optimisation (ships, generators and large vehicles)
• Flow measurement for mineral oils
• Optional remote processing and integration into superior systems
• Manual dosing / batching

Benefits

• Mass flow measurement
• Integrated temperature sensor
• Simple burner setting with flow rate display
• Simple consumption monitoring with limiting value switch Qmin/Qmax
• Manual dosing feature, with a resettable counter
• Can be mounted on the pressure or suction side of a pump
• Space-saving installation, because no straight inlet/outlet sections are required
• Flexible mounting of the meter in horizontal, vertical or inclined positions
• Accurate measurement result - reading is independent of the temperature and viscosity of the fluid
• Minimum failure costs - simple function monitoring, rapid fault analysis and simple repairs on site

CONTOIL^® VZFII, DN 15-40 RC

Technical Data

• Digital Readout / Display
• Threaded connections
• DN 15 - 40
• Flow range: 10 l/h to 6000 l/h
• Accuracy: 0.3 - 1 %
• Pressure: 16 bar

Fuel Types

• Fluids according to ISO 8217-2024
• Heating fuel extra light/light, medium, heavy, fuel blends
• Naphtha
• Lubricatiing liquids (oils)

Application Areas

• Oil burner fuel consumption (heating boilers, industrial furnaces, tar processing plants)
• Consumption monitoring and optimisation (ships, generators and large vehicles)
• Flow measurement for mineral oils
• Optional remote processing and integration into superior systems
• Manual dosing / batching

Benefits

• Mass flow measurement
• Integrated temperature sensor
• Simple burner setting with flow rate display
• Simple consumption monitoring with limiting value switch Qmin/Qmax
• Manual dosing feature, with a resettable counter
• Can be mounted on the pressure or suction side of a pump
• Space-saving installation, because no straight inlet/outlet sections are required
• Flexible mounting of the meter in horizontal, vertical or inclined positions
• Accurate measurement result - reading is independent of the temperature and viscosity of the fluid
• Minimum failure costs - simple function monitoring, rapid fault analysis and simple repairs on site

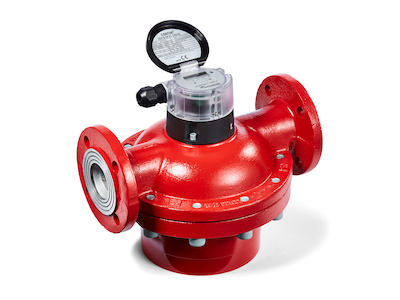

CONTOIL^® VZFII, DN 15-50 FL

Technical Data

• Digital Readout / Display
• Flanged connections
• DN 15 - 50
• Flow range: 10 l/h to 30,000 l/h
• Accuracy: 0.3 - 1 %
• Pressure: 16 bar

Fuel Types

• Fluids according to ISO 8217-2024
• Heating fuel extra light/light, medium, heavy, fuel blends
• Naphtha
• Lubricatiing liquids (oils)

Application Areas

• Oil burner fuel consumption (heating boilers, industrial furnaces, tar processing plants)
• Consumption monitoring and optimisation (ships, generators and large vehicles)
• Flow measurement for mineral oils
• Optional remote processing and integration into superior systems
• Manual dosing / batching

Benefits

• Mass flow measurement
• Integrated temperature sensor
• Simple burner setting with flow rate display
• Simple consumption monitoring with limiting value switch Qmin/Qmax
• Manual dosing feature, with a resettable counter
• Can be mounted on the pressure or suction side of a pump
• Space-saving installation, because no straight inlet/outlet sections are required
• Flexible mounting of the meter in horizontal, vertical or inclined positions
• Accurate measurement result - reading is independent of the temperature and viscosity of the fluid
• Minimum failure costs - simple function monitoring, rapid fault analysis and simple repairs on site

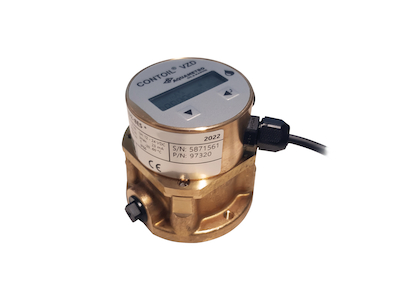

CONTOIL^® VZD2, DN 4 - 8

Technical Data

• Digital Readout / Display
• MOBUS Communication Protocol
• DN 4 - 8 (8E)
• Flow range: 1 l/h to 400 l/h
• Accuracy: 1 %
• Pressure: 25 bar

Fuel Types

• Diesel Fuel
• Heating fuel extra light/light

Application Areas

• Oil burner heating fuel consumption (heating boilers, industrial furnaces, tar processing plants)
• Consumption monitoring and optimisation (ships, generators, locomotives and vehicles)
• Flow measurement for mineral oils
• Optional remote processing and integration into superior systems

Benefits

• Can be mounted on the pressure or suction side of a pump
• Space-saving installation, because no straight inlet/outlet sections are required
• Flexible mounting of the meter in horizontal, vertical or inclined positions
• Accurate measurement result - reading is independent of the temperature and viscosity of the fluid
• Highly accurate data transmission
• Standardized, serial interface RS485 with galvanic isolation (MODBUS protocol)
• Standardized temperature measurement (standard volume, density, mass)
• Minimum failure costs - simple function monitoring, rapid fault analysis

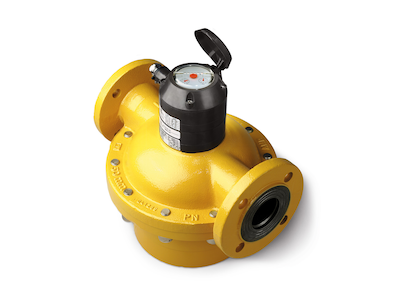

DOMINO^® CHEMICAL METERS

Technical Data

• DN 15 - 50
• Flow range: 140 l/h to 12,000 l/h
• Pressure: 25 bar
• Housing with flanged connections to DIN 2501 / SN 218643
• Various filling and dosing control units available
• Product versions for safe areas or for hazardous areas (ATEX)
• Modular products with wide range of flow sensors, displays, pulsers and batching controls
• Mechanical, pneumatic and electronic batching controls

Liquid Types

• ARD: for chemical liquids with viscosities up to around 10.000 mPa·s
• AMD: for chemical liquids with viscosities up to around 4 mPa·s
• PMD: primarily for water, also for non-aggressive low-viscosity fluids up to around 4 mPa·s

Application Areas

• Flow measurement of liquids in chemical, pharmaceutical, cosmetic and other industries.
• Batching, dosing and filling operations.

Benefits

• Highly flexible mounting with least space requirements
• Suitable for both conductive and non conductive liquids
• Flow disturbances do not influence proper operation and accuracy
• Long life with low maintenance

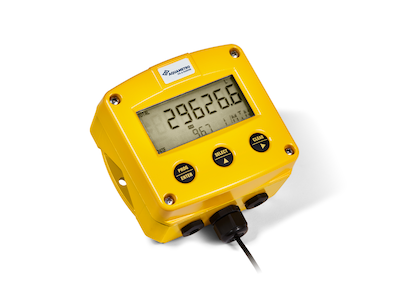

FLOW INDICATORS AND BATCHING CONTROLS

Technical Data

• Six versions are available:
• F113 - flow totalizer (non explosive environment)
• F113Ex-i - flow totalizer (explosive environment)
• F116 - differential flow computer
• F127 - differential flow computer with temperature compensation
• F131 - batch and dosing controller (non explosive environment)
• F131Ex-i - batch and dosing controller (explosive environment)

Features

• Large LCD screen with LED backlight
• Easy electrical connection
• Relay and analogue outputs
• Simplified programming
• Data stored in EEPROM
• Aluminium body painted IP67 (NEMA4)

Application Areas

• The universal converters are used as flow indicators and for batching control of miscellaneous liquids: water, industrial liquids, fuel etc.
• These converters are designed for industrial environments.

Benefits

• User friendly
• Flexibility for different needs
• Compact design
• Many possibilities for installation
• Convenient for all our flowmeter range
• Solid, resistant and long term robustness

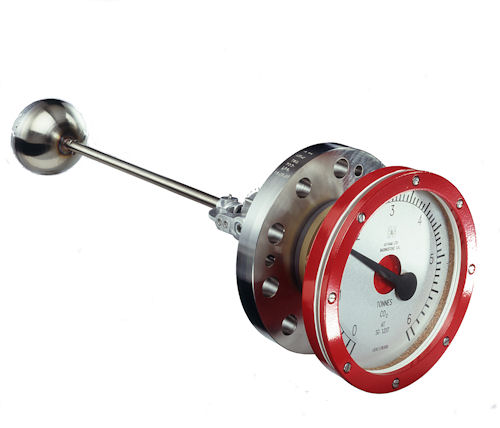

Tank Contents Measurement Products

As part of the Bayham Group of companies we can also supply Tank Contents Measurement Gauges and associated products.
